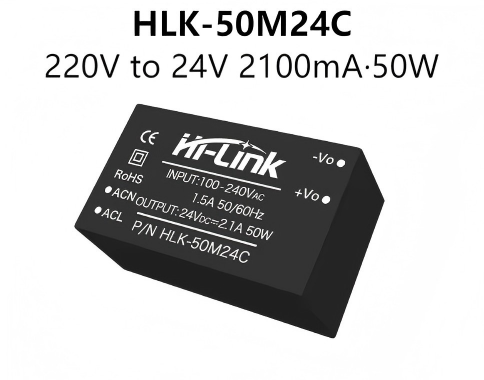

HLK-50M24C HLK-50M24C --EngrWorld

The 50W-C series ultra-small module power supplies are designed by Hailingke Electronics for customers. They are small in size, high in efficiency, and adopt the most advanced gallium nitride chips. They feature advantages such as a global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. They are widely used in industries such as smart home, automation control, communication equipment, and instruments.

Product Features

Small size, the smallest volume in the industry with the same power
Universal input voltage worldwide (100~240Vac)
Low power consumption, green and environmentally friendly, no-load loss <0.21W
Low ripple, low noise
Good output short-circuit and overcurrent protection with self-recovery function
High efficiency and high power density
Input and output isolation voltage of 3000Vac
100% full-load aging and testing
High reliability, long service life design, continuous working time more than 100,000 hours
Meet UL, CCC, CE requirements; product design meets EMC and safety testing requirements
Adopt high-quality environmentally friendly waterproof thermal conductive adhesive for potting, moisture-proof, vibration-proof, meeting the IP65 standard for waterproof and dustproof
Economical solution with high cost performance
Can work without external circuits
1-year quality warranty period

	Type	Description
	Product type	AC-DC module
	Manufacturer	Shenzhen Hi-Link
	Brand	Hi-Link
	Universal package	Module Package
	Transfer type	AC-DC Isolated Power Module
	Conversion efficiency	≥87%
	Operation voltage (AC)	85-265VAC (nominal: 100-240VAC)
	Operation voltage (DC)	120-350VDC
	Output voltage （Vout)	24V
	Output current	2100mA
	Output power	50W
	Isolation voltage (Vrms)	3000VAC
	Max capacitive load	≤1500μF
	Package	Full-module potting encapsulation
	Operating temperature	-25℃~+60℃
