Hailingke 24G Gesture Recognition Millimeter Wave Radar LD2450A Human Proximity Sensing Switch Radar Module--EngrWorld

Motion target tracking is to track the position of the moving target in the region in real time, and realize the distance, angle and speed measurement of the moving target in the region.The LD2450 is a motion target tracking sensor module from the Hi-link 24G millimetre wave radar series, which includes extremely simplified 24 GHz radar sensor hardware and intelligent algorithm firmware. The solution is mainly used in general indoor scenarios such as homes, offices and hotels to enable the location tracking of moving human bodies. The sensor hardware consists of an AloT millimetre wave radar chip, a high performance one-transmitter-two-receiver microstrip antenna and a low cost MCU and peripheral auxiliary circuitry. The intelligent algorithm firmware uses FMCW waveforms and the radar chip's proprietary advanced signal processing technology. It supports serial output of detection data, which is plug-and-play and can be flexibly applied to different smart scenarios and end products.

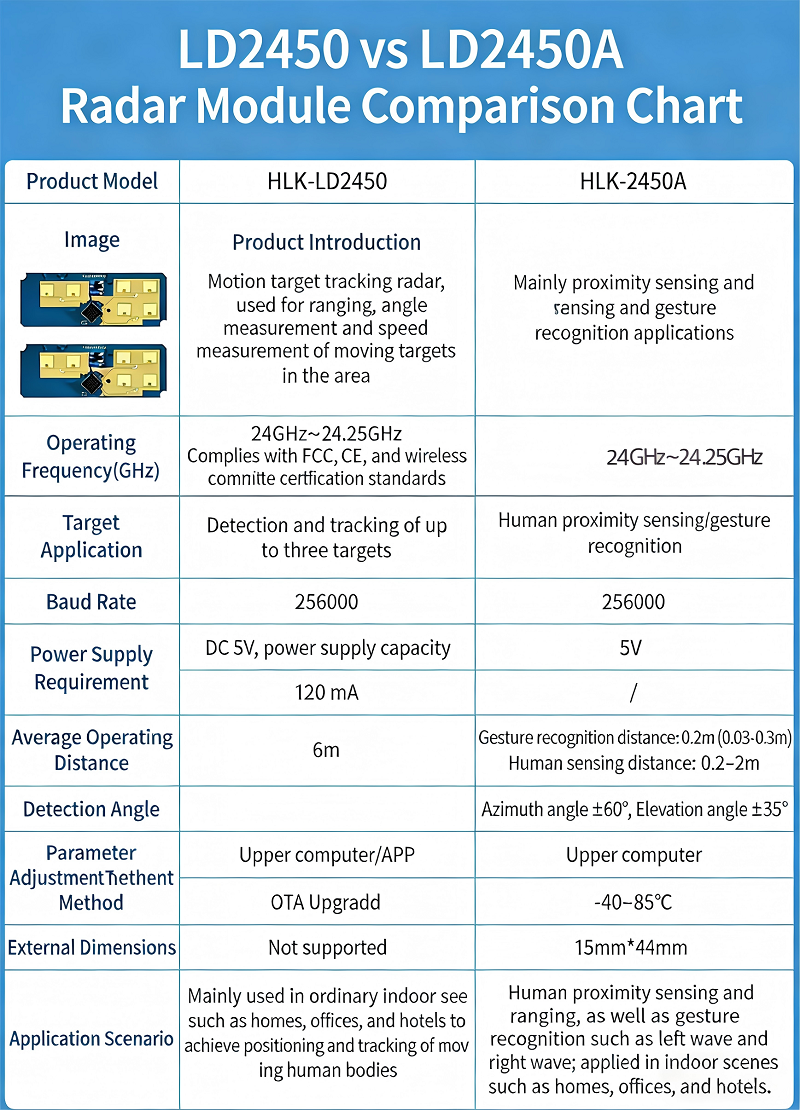

2. Product Features

2.1 Characteristics

24 GHz ISM band
Integrated intelligent millimeter wave radar chip and intelligent algorithm firmware
Precise motion target localization and tracking
Longest detection range 6m
Ultra-small module size: 15mm x 44mm
Wall mounting
Azimuth angle ±60°, pitch angle ±35°
The ultimate cost-effective choice
Multiple connection options with pin and socket interface

2.2 Solution advantages

LD2450 human body sensing module adopts 24GHz millimeter wave radar sensor technology, compared with other programs, has obvious advantages in human body sensing applications:

1. In addition to sensitive sensing of the movement of the human body, for the traditional program can not identify the micro-movement of the human body can also be sensitive to sense;

2. Good environmental adaptability, the induction effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuations;

3. Good shell penetration, can be hidden inside the shell work, no need to open holes in the product surface, improve the product aesthetics;

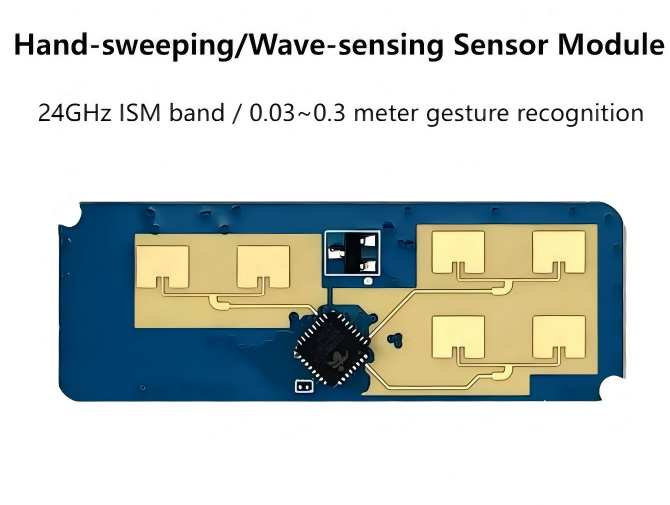

3. Hardware Description

PIN definition

	类型	描述
	产品类型	雷达模块
	制造商	Shenzhen Hi-Link
	品牌	Hi-Link
	封装/规格	40x15x3mm
	传感器模块类型	磁敏传感器
	工作电压（Vin)	5V
	工作电流	0.12A
	工作温度	-40℃~+85℃
